The MiniVac scavenging pump is an easy to use gas evacuation system. It applies a suction flow to veterinary anesthesia delivery devices in order to protect the personnel in the laboratory from halogenated gas exposure.

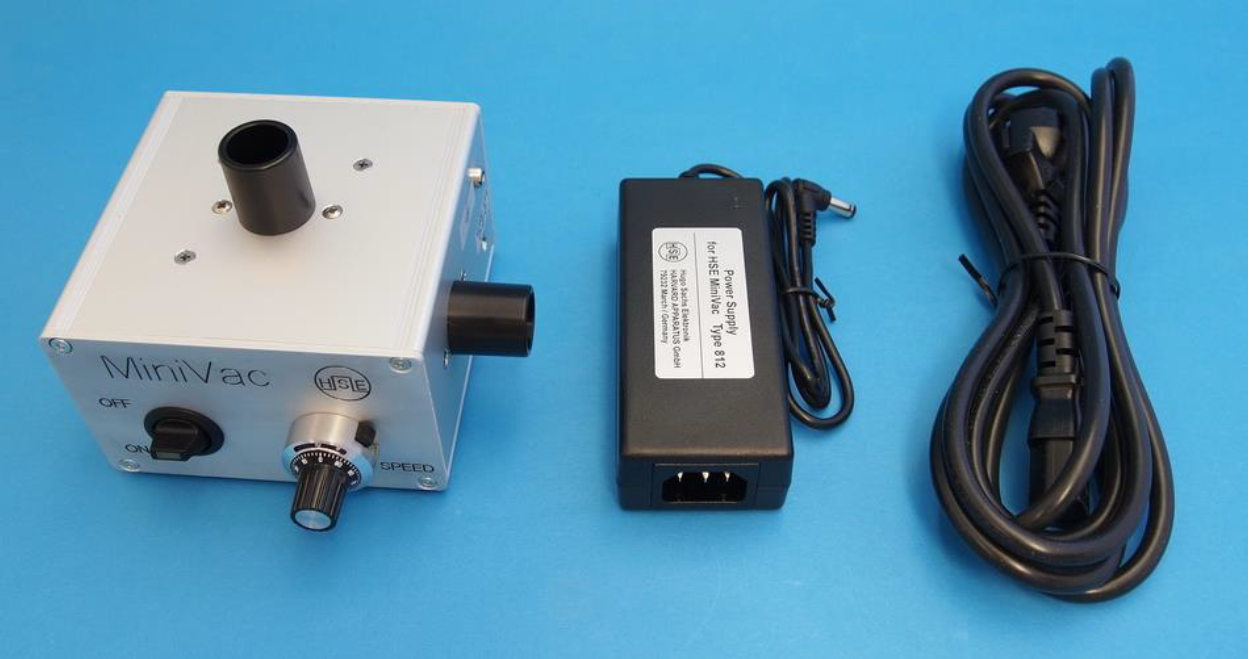

73-4910 MiniVac includes:

• MiniVac Unit
• Power supply and country specific line cord (Replacement item: 73022724)
• User manual

Possible Configurations of the MiniVac.

Minivac + F/Air Canister

• Item 73-4910 Minivac
• Item 73-4915 F/Air Canister Adapter
• Item 72-1294 F/Air Filter Canister
• Item 34-0426 Corrugated Plastic Tubing, 22mm taper (ID)

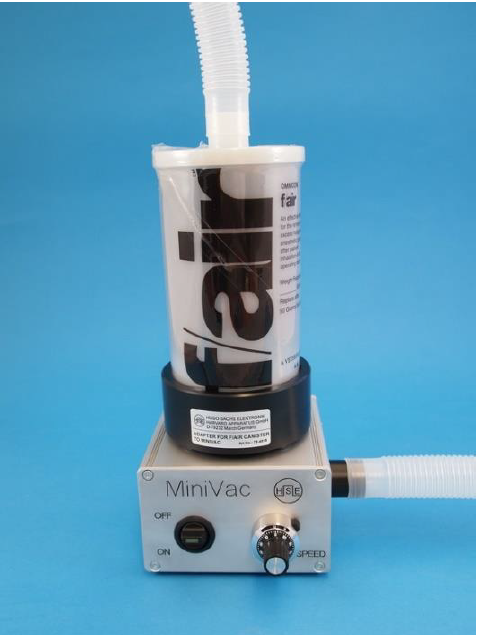

MiniVac shown with an F/Air canister and F/Air canister adapter on the inlet port. In this set-up, the isoflurane gas mixture is pulled directly through the F/Air canister, where it is scavenged.

MiniVac + Fluosorber Canister

• Item 73-4910 Minivac
• Item 73-4911 Adapter for Fluosorber Canister to MiniVac
• Item 34-0415 Fluosorber Filter Canister, case of 6
• Item 34-0426 Corrugated Plastic Tubing, 22mm taper (ID)

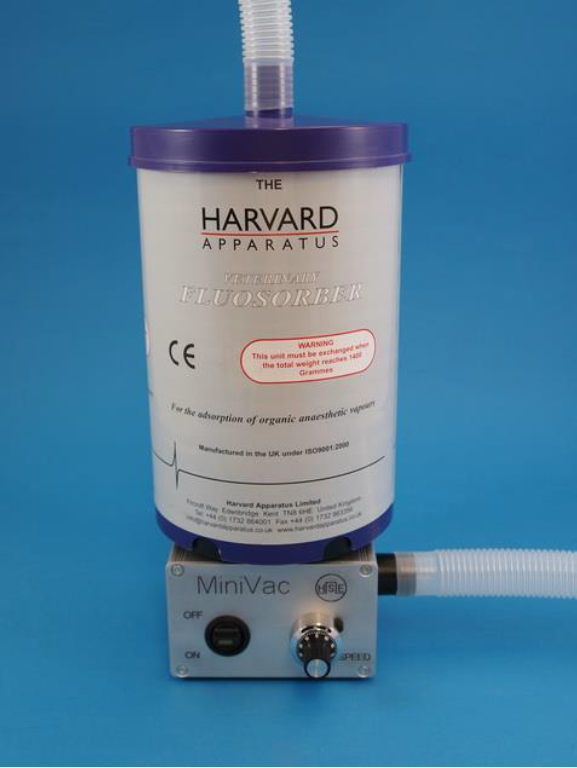

MiniVac shown with a Fluosorber canister and adapter on inlet port. In this set-up, the isoflurane gas mixture is pulled directly through the Fluosorber canister, where it is scavenged.

These can also be configured with the Fluosorber at the end.

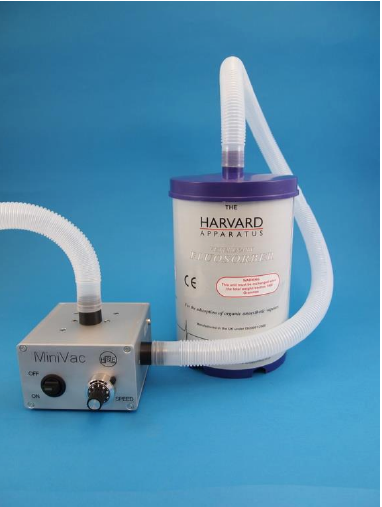

MiniVac shown with 22mm corrugated plastic tubing on the inlet port and 22mm corrugated plastic tubing on the outlet port which is then connected to a Fluosorber filter canister.
