The HSE Data Acquisition Hardware Driver is automatically installed as part of the Ponemah software installation. However, if the HSE Data Acquisition Hardware driver is not installed properly it will need to be installed manually. A backup of the HSE Data Acquisition Hardware Driver installation is located in the C:\Ponemah\Data Translation[JD1]  folder after Ponemah extracts all folders.

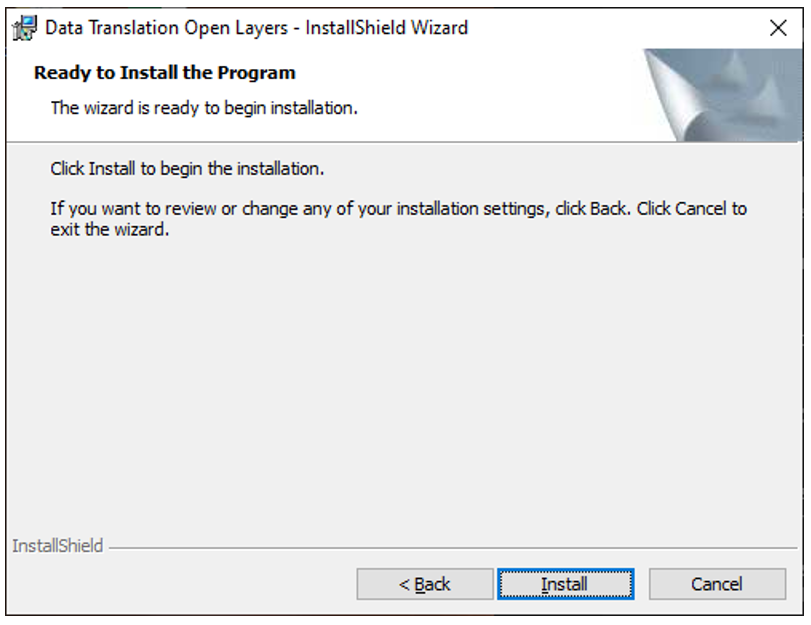

To install manually, run the installation SetupOem.exe to launch the wizard. Click the Install button in the wizard to begin the installation.

If a Windows Security prompt appears, click Install to continue the installation.

Click Next to proceed with the installation.

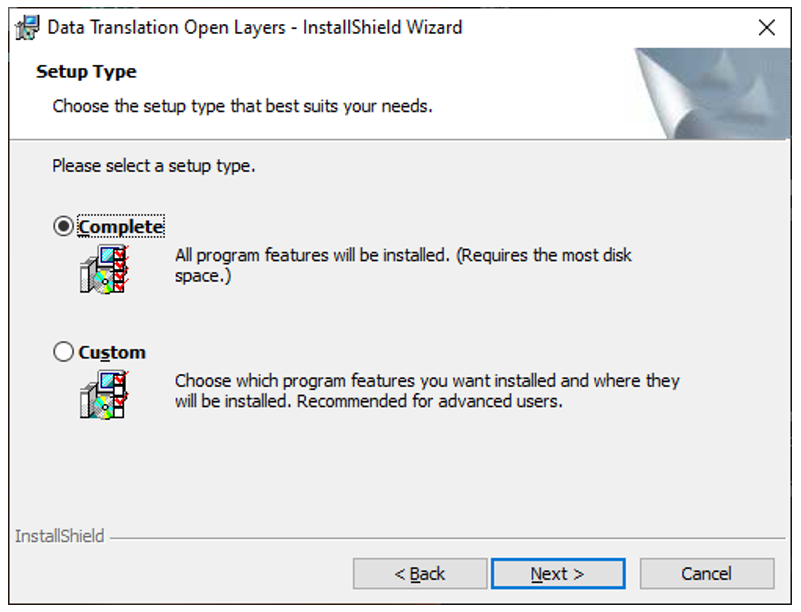

Choose the Complete option and click Next.

Click Install to finish the Installation of the Open Layers

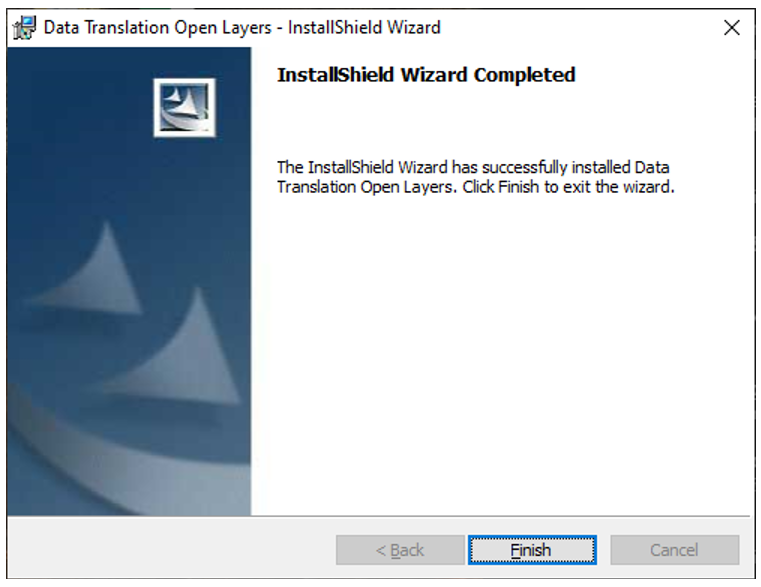

Click Finish to complete the installation.
